Static Application

LiYCY/LiYCY(TP)

SIGNAL WITH PAIR-ST

Applicative Features

Minimum Bending radius
Cross Section Cross section max Dynamic Installation Static installation
0.14 1.50 Occ. Flexing 10 x Ø 6.0xØ

Description

Suitable for static or flexible applications with free movement

without tensile stress and forced motion control in dry

damp

and wet environments

however

not suitable for outdoor use. Favourable crosstalk attenuation values are achieved because of the pairs' twisted stranding. Even interference through parallel running cables is suppressed due to the dense braided screen assisted by the drain wire

making these cables optimal when used in systems with a risk of interference radiation.

Approvals

Certification image not found

2014/35/CEE

Certification image not found

2014/30/EU

Certification image not found

2011/65/UE

Certification image not found

1907/2006

Technical data

static

-40°C +80°C

Occasional Flexing

-5°C +80°C

Max operating voltage

350 V (not for power applications)

Test Voltage

(core/core) = 1200 V (core/screen) = 800 V

Insulation resistance

> 20 GOhm x cm

Nominal impedance

78

Ω (approx.)

INDUCTANCE = 0,65 mH/Km

Mutual capacitance at 800 Hz (core/core):

_ 0,14 mm² &lt

100 pF/m

_ 0,25 mm² &lt

150 pF/m

Mutual capacitance at 800 Hz (core/screen):

_ 0,14 mm² &lt

240 pF/m

_ 0,25 mm² &lt

270 pF/m

Breakdown voltage = 2400 V

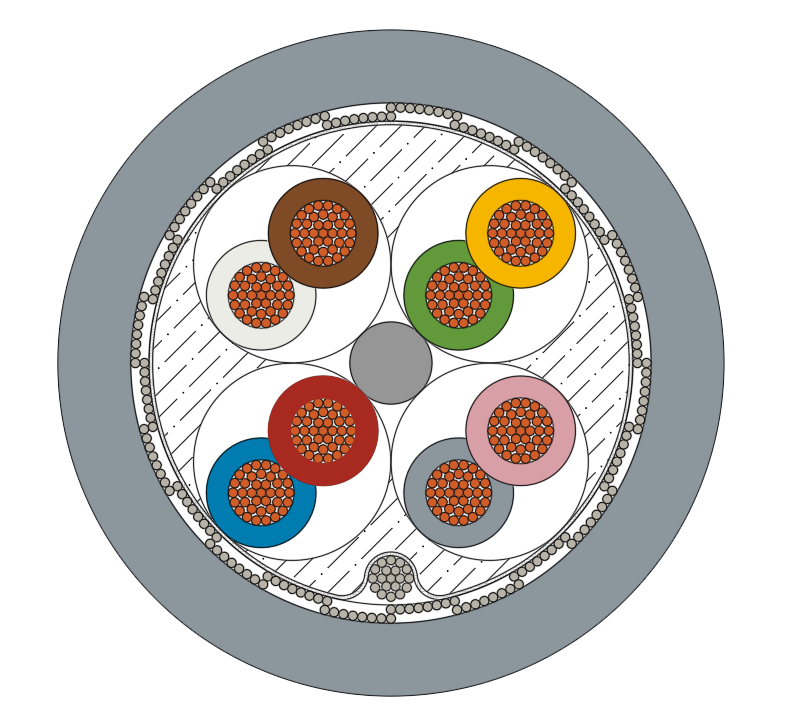

Construction features

Pairs
Conductor

CL5 Flexible.

Bare copper.
Insulation

PVC compound.
Insulation Color

Colours sequence refers to DIN 47100 standard.

Overall Stranding

filler

Filler

Not hygroscopic.

separationLayer

Tape

Polyester transparent.

drainWire

Drain wire

Tinned copper

screen

Shield

Tinned copper

85 % ± 5 %
Sheath

PVC compound.
Sheath Colour Gray, RAL: 7001, desina: no

Products features


Fire performance

IEC EN 60332-1-2

DIN VDE 0482-332-1-2


Oil performance

EN 50290-2-22 TM54

(CEI 20-34/0-1

4 h / 70°C

oil IRM 902)

VDE 0819 parte 102.

teco code N° cores x cross-section cut rolls [M] drums [M] Ext Ø [mm] Weight [kg/km]

21234

(1x2x0,25)ST

500

4.2

45

21235

(2x2x0,25)ST

100

500

5.8

53

20713

(3x2x0,50)ST

100

500

8.2

100

21236

(4x2x0,25)ST

100

6.9

80

23673

(6x2x0,50)ST

500

11

205
