Dynamic Application

PMXX^®️

SENSOR-ACTUATOR BOX 300V

Applicative Features

Up to 5 million
Guaranteed Cycles

30,0 m/s²
Acceleration

15,0m
Cable length

200,0 m/min
Travel speed

Minimum Bending radius

Cross Section	Cross section max	Dynamic Installation	Static installation
0.34	0.75	7.5xØ	4.0xØ

Approvals

AWM STYLE 20233 80°C 300V

AWM I/II A/B 80°C 300V

2014/35/CEE

2011/65/UE

1907/2006

IEC 60754-1 EN 50267-1

Technical data

dynamic

-20°C +80°C

static

-40°C +80°C

Nominal voltage

300V

Test Voltage

1500V

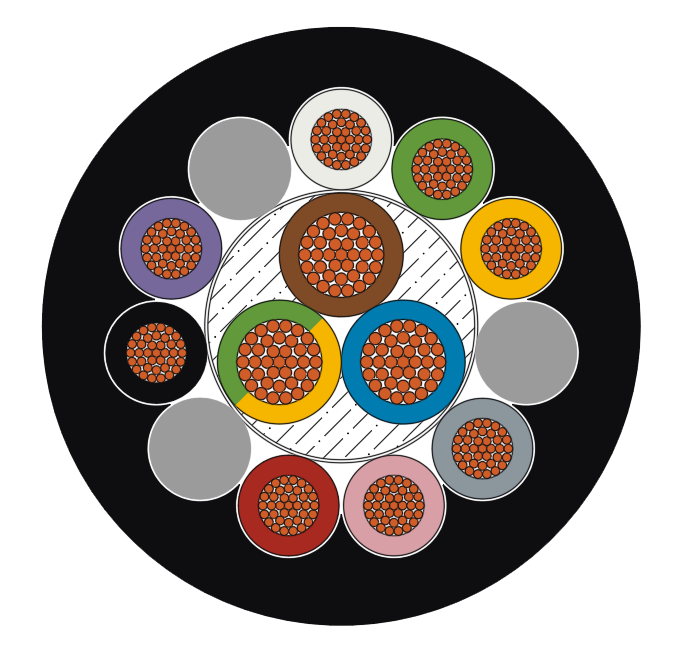

Construction features

Power conductors
	Conductor	CL6 Extra-flexible. Bare copper.
	Insulation	Polypropylene compound (PP)
	Insulation Color	UNEL Table Colour

Signal conductors
	Conductor	CL6 Extra-flexible. Bare copper.
	Insulation	Polypropylene compound (PP)
	Insulation Color	Various colours

Overall stranding
	filler	Filler Polypropylene
	separationLayer	Tape Non-woven tape
	Sheath	Polyurethane compound (TMPU)
	Sheath Colour	Matte black, RAL: 9005, desina: no

Products features

Fire performance

DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2, UL Cable flame

UL VW-1, CSA FT1.

Oil performance

VDE 0473-811-404, IEC 60811-404 (EU)

CEI EN 50363-10-2 (EU)

1581 (UL)

Uv performance

ISO 4892-2 - HD605 Part. 2.4.20

Water performance

UL 1581 - IEC 60811-1-3

cold Performance

EN 60811-1-4

Abrasion performance

ASTM D 4060

Hozone performance

EN 50396 art. 8.1.3

teco code	N° cores x cross-section	cut	rolls [M]	drums [M]	Ext Ø [mm]	Weight [kg/km]	Ins. colour exc
23410	3G0,75+8x0,34 3GAWG19+8xAWG22		100		8.5	110	Signal conductors: White, Green, Yellow, Gray, Pink, Red, Black, Violet
26792	3G0,75+16x0,34 3GAWG19+16xAWG22			500	10	144	Signal conductors: White, Green, Yellow, Gray, Pink, Red, Black, Violet, Gray/Pink, Red/Blue, White/Green, Brown/Green, White/Yellow, Yellow/Brown, White/Gray, Gray/Brown. *Ringed bicolor.

teco code

N° cores x cross-section

cut

rolls [M]

drums [M]

Ext Ø [mm]

Weight [kg/km]

Ins. colour exc

23410

3G0,75+8x0,34

3GAWG19+8xAWG22

100

8.5

110

Signal conductors: White, Green, Yellow, Gray, Pink, Red, Black, Violet

26792

3G0,75+16x0,34

3GAWG19+16xAWG22

500

144

Signal conductors: White, Green, Yellow, Gray, Pink, Red, Black, Violet, Gray/Pink*, Red/Blue*, White/Green*, Brown/Green*, White/Yellow*, Yellow/Brown*, White/Gray*, Gray/Brown*. *Ringed bicolor.
