Dynamic Application

PMXX®️

PROXIMITY SENSORS

Applicative Features

Up to 5 million cycles
Guaranteed Cycles
30,0m/s²
Acceleration
15,0m
Cable length
240,00m/min
Travel speed
Minimum Bending radius
Cross Section Cross section max Dynamic Installation Static installation
0.34 0.50 6.0xØ 4.0xØ

Description

UL/CSA certified flexible multicore cables used in decentralized control technology as connector systems for sensors

actuators

controls

drives

and photocells. Suitable for wiring with ordinary

PNP

NPN

or equivalent type Lumberg sensor cables with medium mechanical stress applications. In combination with injected circular connectors and installed actuator-sensor boxes

they constitute an important connecting element between the periphery and the PLC in production systems. These cables are designed for high dynamic applications in drag chains

working in dry conditions with high resistance to industrial oils and chemical agents. Reduced external diameter for low-space applications.

Approvals

Certification image not found

AWM STYLE 20233 80°C 300V

Certification image not found

AWM I/II A/B 80°C 300V

Certification image not found

2014/35/CEE

Certification image not found

2011/65/UE

Certification image not found

1907/2006

Certification image not found

IEC 60754-1

EN 50267-1

Technical data

storage

-50°C +80°C

dynamic

-20°C +80°C

static

-40°C +80°C

Nominal voltage

300 V

Test Voltage

1500V

Insulation resistance

> 100 MΩ x km (20°C)

Nominal impedance

.

Construction features

Signal conductors
Conductor

CL6 Extra-flexible.

Bare copper.
Insulation

Polypropylene compound (PP)
Insulation Color

Various colours

Overall Stranding

filler

Filler

Polypropylene

separationLayer

Tape

Non-woven tape
Sheath

Polyurethane

compound (TMPU)
Sheath Colour Matte black, RAL: 9005, desina: no

Products features


Fire performance

DIN VDE 0482-332-1-2

DIN EN 60332-1-2

IEC 60332-1-2

UL Cable flame

VW-1

FT1.


Oil performance

1581(UL)

IEC 60811-404(EU)

CEI EN 50363-10-2(EU)

IRM 902


Uv performance

ISO 4892-2 - HD605 part. 2.4.20


Water performance

UL 1581 - IEC 60811-1-3


cold Performance

EN60811-1-4


Abrasion performance

ASTM D 4060

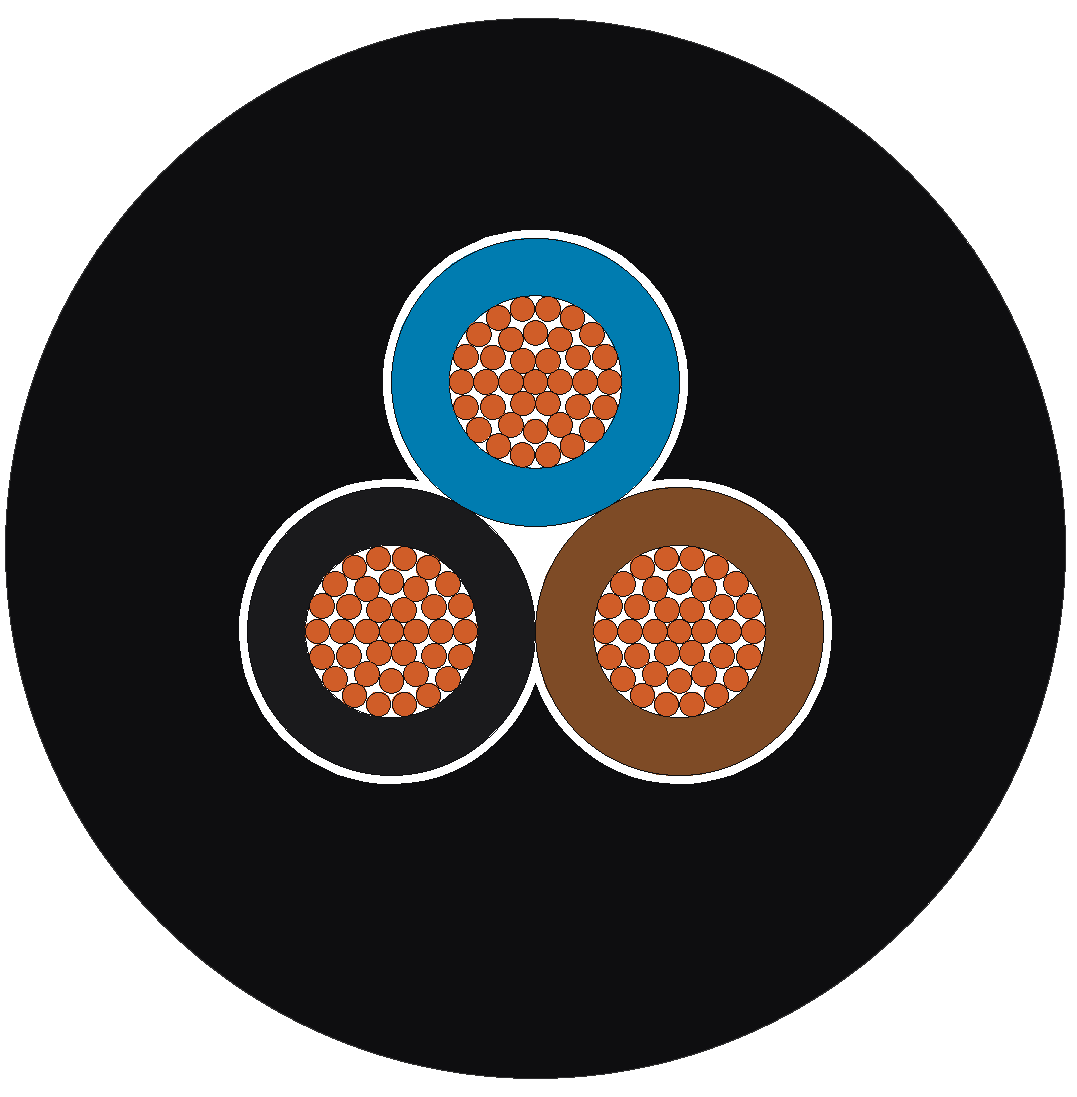

teco code N° cores x cross-section cut rolls [M] drums [M] Ext Ø [mm] Weight [kg/km] Ins. colour exc

27720

3x0,34

3xAWG22

100

500

4.6

26

Blue

Brown

Black

19356

4x0,34

4xAWG22

100

500

4.9

32

Blue

Brown

Black

White

27263

5G0,50

5GAWG21

100/200

500

6.1

56

Blue

Brown

Black

White

Green/Yellow
