Static Application

FE

CANOPEN 300V

Applicative Features

Minimum Bending radius
Cross Section Cross section max Dynamic Installation Static installation
0.22 0.22 6.0xØ

Description

UL/CSA certified flexible cables for industrial devices that work with the CANOPEN® data transmission standard

designed for static application between the central controlling unit and the input/output peripheral components. The construction of these cables is designed to limit electromagnetic interference for optimal and clean communication.

Approvals

Certification image not found

AWM I/II A/B 80°C 300V

Certification image not found

2014/35/CEE

Certification image not found

2014/30/EU

Certification image not found

2011/65/UE

Certification image not found

1907/2006

Certification image not found

AWM STYLE 2571 80°C

Technical data

Installation

-5°C +80°C

static

-30°C +80°C

Nominal voltage

300V

Test Voltage

1500 (a.c. 50 Hz)

Nominal impedance

120±15% ohm

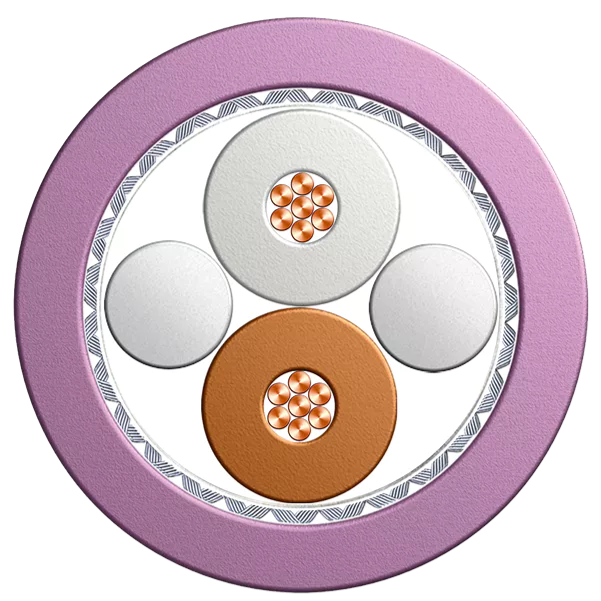

Construction features

Twisted pair
Conductor

CL2 Flexible.

Bare copper.
Insulation

Polyethylene compound (PE)
Insulation Color

Colours sequence refers to DIN 47100 standard.

Overall Stranding

filler

Filler

Polypropylene

separationLayer

Tape

PET Polyester compound

screen

Shield braid

Tinned copper

85 % ± 5 %
Sheath

PVC compound.
Sheath Colour Violet, RAL: 4001, desina: no

Products features


Fire performance

UL 1581 sec.1061 Cable flame

FT1(CSA)

IEC 60332-1-2(EU)


Oil performance

1581(UL)

IEC 60811-404(EU)

EN 50363-4-1 (EU)

VDE 0207-363-4-1(EU)

teco code N° cores x cross-section cut rolls [M] drums [M] Ext Ø [mm] Weight [kg/km]

27372

(1x2x0,22)ST

(1x2xAWG24)ST

100

500

5.9

44
