Dynamic Application

PMXX®️

SENSOR-ACTUATOR BOX 1000V

Applicative Features

Up to 5 million
Guaranteed Cycles
30,0 m/s²
Acceleration
15,0m
Cable length
200,0 m/min
Travel speed
Minimum Bending radius
Cross Section Cross section max Dynamic Installation Static installation
0.34 0.75 7.5xØ 4xØ

Description

Multi-core UL/CSA certified sensor-actuator box cables

designed for continuous flexing use in drag chains or free movement in automation technology

machine tool manufacturing

or transport and conveyor technology

also suitable for the automotive industry or for plant and mechanical engineering. The polyurethane outer jacket and the low-capacity insulation provide excellent performance even in extremely harsh operating conditions

with the presence of aggressive coolants and lubricants.

Approvals

Certification image not found

AWM STYLE 20234 80°C 1000V

Certification image not found

AWM I/II A/B 80°C 1000V

Certification image not found

2014/35/CEE

Certification image not found

2011/65/UE

Certification image not found

IEC 60754-1

EN 50267-1

Technical data

dynamic

-20°C +80°C

static

-40 °C +80 °C

Nominal voltage

1000V

Test Voltage

3000V

Construction features

Power conductors
Conductor

CL6 Extra-flexible.

Bare copper.
Insulation

Polypropylene compound (PP)
Insulation Color

UNEL Table Colour

Signal conductors
Conductor

CL6 Extra-flexible.

Bare copper.
Insulation

Polypropylene compound (PP)
Insulation Color

Various colours

Overall Stranding

filler

Filler

Polypropylene

separationLayer

Tape

Non-woven tape
Sheath

Polyurethane

compound (TMPU)
Sheath Colour Matte black, RAL: 9005, desina: no

Products features


Fire performance

DIN VDE 0482-332-1-2

DIN EN 60332-1-2

IEC 60332-1-2

UL Cable flame

UL VW-1

CSA FT1.


Oil performance

VDE 0473-811-404

IEC 60811-404 (EU)

CEI EN 50363-10-2 (EU)

1581 (UL)


Uv performance

ISO 4892-2 - HD605 Part. 2.4.20


Water performance

UL 1581 - IEC 60811-1-3


cold Performance

EN 60811-1-4


Abrasion performance

ASTM D 4060


Hozone performance

EN 50396 art. 8.1.3

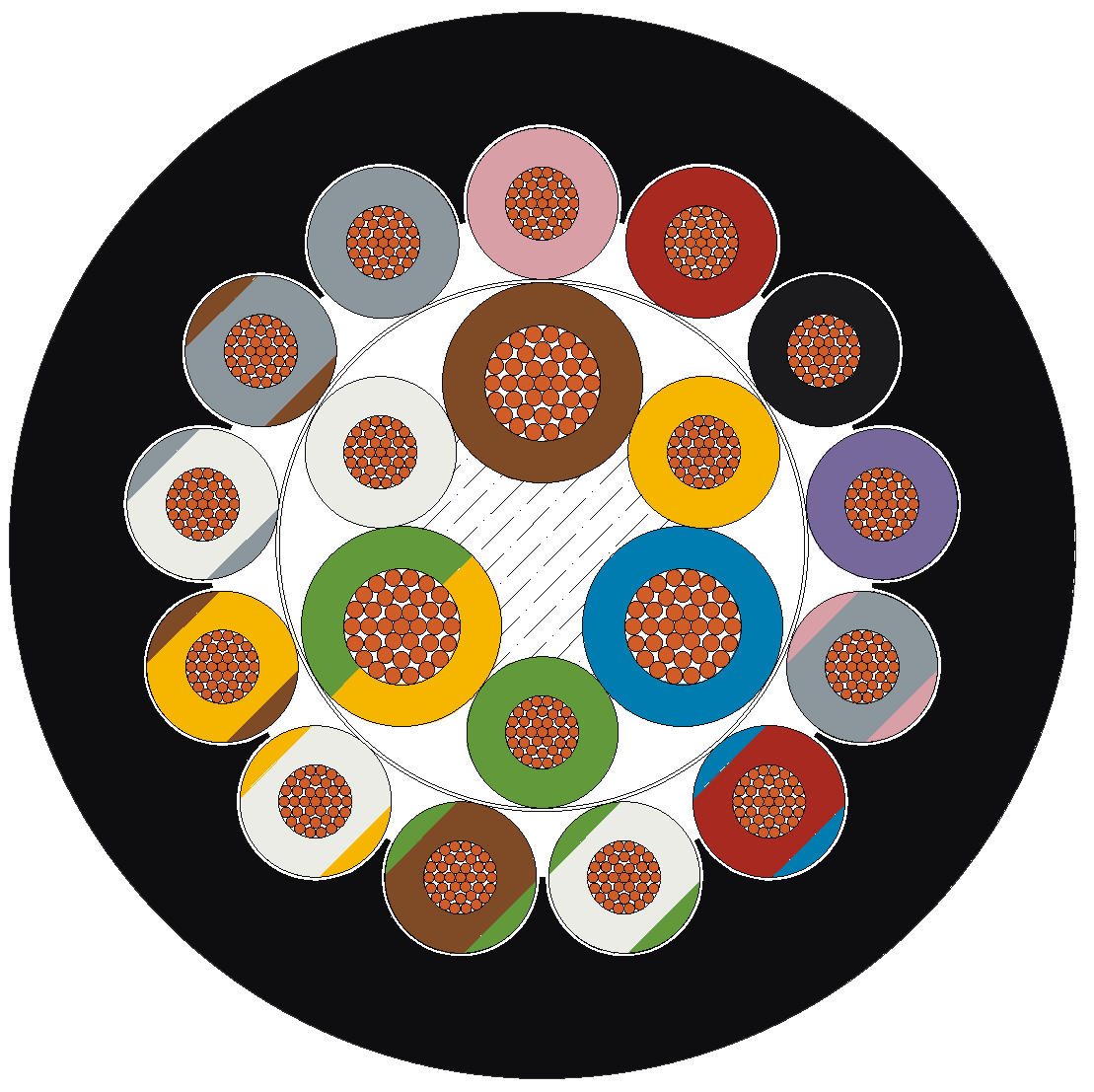

teco code N° cores x cross-section cut rolls [M] drums [M] Ext Ø [mm] Weight [kg/km] Ins. colour exc

28906

3G0,75+16x0,34

3GAWG19+16xAWG22

500/1000

11.1

150

Signal conductors: White

Green

Yellow

Gray

Pink

Red

Black

Violet

Gray/Pink*

Red/Blue*

White/Green*

Brown/Green*

White/Yellow*

Yellow/Brown*

White/Gray*

Gray/Brown*. *Ringed bicolor.
