Dynamic Application

PMXX®️ PLUS

SERVO WITH TRIPLET

Applicative Features

Up to 5 million cycle
Guaranteed Cycles

50,0 m/s2
Acceleration

15,0 m
Cable length

300,0 m/min
Travel speed

Minimum Bending radius

Cross Section	Cross section max	Dynamic Installation	Static installation
0.50	16.00	7xØ	4xØ

Approvals

AWM STYLE 21209 90°C 1000V

AWM I/II A/B 90°C 1000V

2014/35/CEE

2014/30/EU

2011/65/UE

1907/2006

IEC 60754-1

EN 50267-1

Technical data

storage

-50°C +80°C

dynamic

-30°C +90°C

static

-40°C +90°C

Nominal voltage

1000 V

Test Voltage

4,0 kV

Test Voltage Reference

EN 50395 part 6-7 - UL/1581

Insulation resistance

≥1 Gohm/Km(20°C)

≥10 Mohm/Km(90°C)

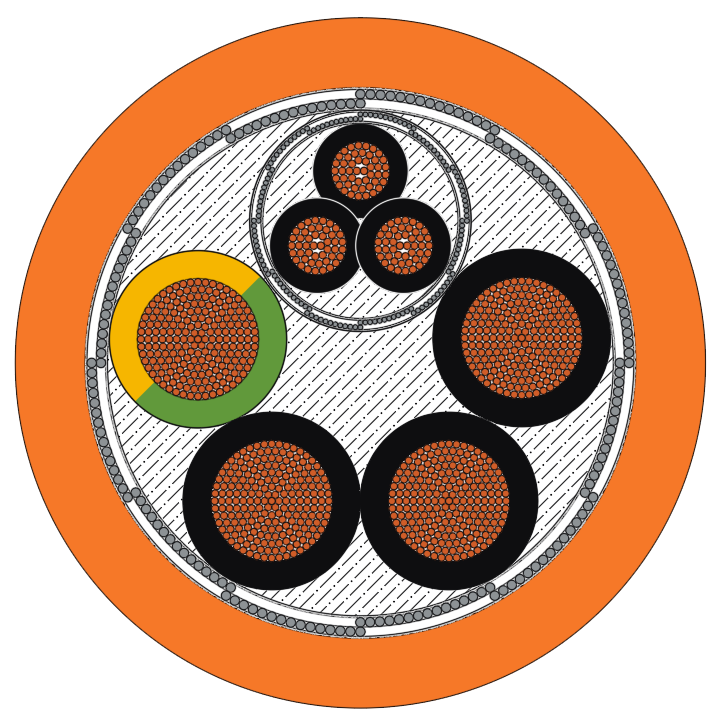

Construction features

Power conductors
	Conductor	CL6 Extra-flexible. Bare copper.
	Insulation	Polypropylene compound (PP)
	Insulation Color	Black core with white printing ( U/L1/C/L+ V/L2 W/L3/D/L-) + Green-Yellow.
	separationLayer	Inner tape Polyester transparent tape or non-woven tape

Control Triplet Screened
	Conductor	CL6 Extra-flexible. Bare copper.
	Insulation	Polypropylene compound (PP)
	Insulation Color	Black core with white printed numbers.
	filler	Filler Polypropylene
	separationLayer	Intermediate tape Non-woven tape
	screen	Inner screen Tinned copper 85 % ± 5 %
	separationLayer	Intermediate tape Non-woven tape

Overall Stranding
	filler	Filler Polypropylene
	separationLayer	Tape Non-woven tape
	screen	Screen Tinned copper 85 % ± 5 %
	separationLayer	Tape Non-woven tape
	Sheath	Polyurethane compound (TMPU)
	Sheath Colour	Orange, RAL: 2003, desina: yes

Products features

Fire performance

Self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2

DIN EN 60332-1-2

IEC 60332-1-2

UL 1581 sec.1061 Cable flame

UL VW-1

CSA FT1

Oil performance

VDE 0207-363-10-2

IEC 60811-404 (EU)

CEI EN 50363-10-2

1581 (UL)

Uv performance

according to ISO 4892-2

EN 50289-4-17

ASTM-D-2565-16

EN 50618

Water performance

UL 1581

IEC 60811-1-3

EN 50396 (Hydrolyses Resistance)

cold Performance

EN60811-1-4

Abrasion performance

ASTM D 4060

Mud performance

Nek TS 606

IEC 60092-360 Annex C+D

Microbe performance

VDE 0282/10

Hozone performance

EN 50396 art. 8.1.3

teco code	Oem ref.	N° cores x cross-section	drums [M]	Ext Ø [mm]	Weight [kg/km]
43309	SEW	[4G1,50+(3x1,00)ST]ST [4GAWG16+(3xAWG18)ST]ST	500	11.8	220
43310	SEW	[4G2,50+(3x1,00)ST]ST [4GAWG14+(3xAWG18)ST]ST	500	13.4	280
43311	SEW	[4G4,00+(3x1,00)ST]ST [4GAWG12+(3xAWG18)ST]ST		14.8	350
43312	SEW	[4G6,00+(3x1,50)ST]ST [4GAWG10+(3xAWG16)ST]ST		17	530
43313	SEW	[4G10,00+(3x1,50)ST]ST [4GAWG08+(3xAWG16)ST]ST		19.8	800
