Dynamic Application

FRX®️ PLUS

POWER&CONTROL SINGLE CORE

Applicative Features

Up to 5 million
Guaranteed Cycles

10,0 m/s2
Acceleration

15,0 m
Cable length

180,0 m/min
Travel speed

Minimum Bending radius

Cross Section	Cross section max	Dynamic Installation	Static installation
4.00	16.00	7.5xØ	4.0xØ
25.00	240.00	10.0xØ	6.0xØ

Description

UL/CSA certified flexible single-core power and control cables

designed for dynamic drag chains and automatic machinery applications with free movement without tensile stress or forced movements in dry or moist environments. Suitable for indoor and outdoor use. This type of cable can be a smart alternative to multicore power cables in case space or minimum bending radius requirements are challenging.

Approvals

AWM STYLE 10678 90°C 1000V

AWM I/II A/B 90°C 1000V

2014/35/CEE

2011/65/UE

1907/2006

Technical data

dynamic

-5°C +90°C

static

-40°C +90°C

Nominal voltage

1000 V (UL/CSA)

u_o/U 0,6/1 kV (VDE)

Test Voltage

4,0 kV

Test Voltage Reference

EN 50395 part 6-7 - UL/1581

Insulation resistance

>=1 Gohm/Km

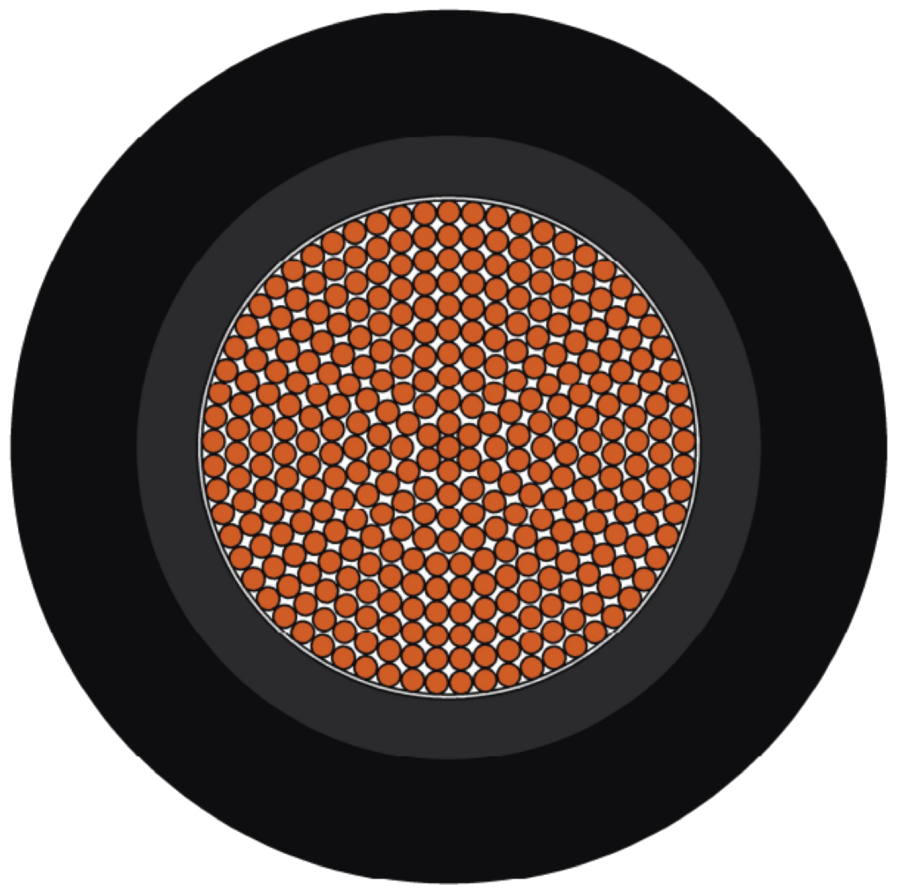

Construction features

Power conductors
	Conductor	CL6 Extra-flexible. Bare copper.
	Insulation	Polypropylene compound (PP)
	Insulation Color	Black RAL 9005 or Green-Yellow
	separationLayer	Inner tape Polyester transparent tape or non-woven tape

Overall Stranding
Sheath	PVC compound.
Sheath Colour	Matte black, RAL: 9005, desina: no

Overall Stranding

Sheath

PVC compound.

Sheath Colour

Matte black, RAL: 9005, desina: no

Products features

Fire performance

DIN VDE 0482-332-1-2

DIN EN 60332-1-2

IEC 6033-1-2

UL cable flame

UL VW-1

CSA FT1

Oil performance

VDE 0473-811-404

IEC 60811-404 (EU)

CEI EN 50363-4-1 (EU)

1581 (UL)

Uv performance

according to CEI EN 50289-4-17

ISO 4892-2

ASTM-D-2565-16

Water performance

UL 1581

IEC 60811

Hydrocarbons performance
