Dynamic Application

FRX®️ PLUS

ENCODER&RESOLVER 3

Applicative Features

up to 5 Mio
Guaranteed Cycles
10,0m/sec²
Acceleration
20,0m
Cable length
180,00m/min
Travel speed
Minimum Bending radius
Cross Section Cross section max Dynamic Installation Static installation
0.14 1.00 7.5xØ 6.0xØ

Description

UL/CSA certified flexible cables for data transmission of encoder and resolver devices

designed for dynamic application in drag chains. They are also suitable for permanently flexible applications that allow free movement without tensile stress and without motion control in dry

damp

and wet environments. Suitable for indoor and outdoor use. Interference is suppressed thanks to the shields.

Approvals

Certification image not found

AWM STYLE 20042 90°C 300V

Certification image not found

AWM I/II A/B 90°C 300V

Certification image not found

2014/35/CEE

Certification image not found

2014/30/EU

Certification image not found

2011/65/UE

Certification image not found

1907/2006

Technical data

dynamic

-5 °C +90 °C

static

-40 °C +90 °C

Nominal voltage

300V (UL/CSA)

Test Voltage

c/c 2000Vrms

1min

core/overall screen 2000Vrms

1min

Insulation resistance

≥1 Gohm/Km

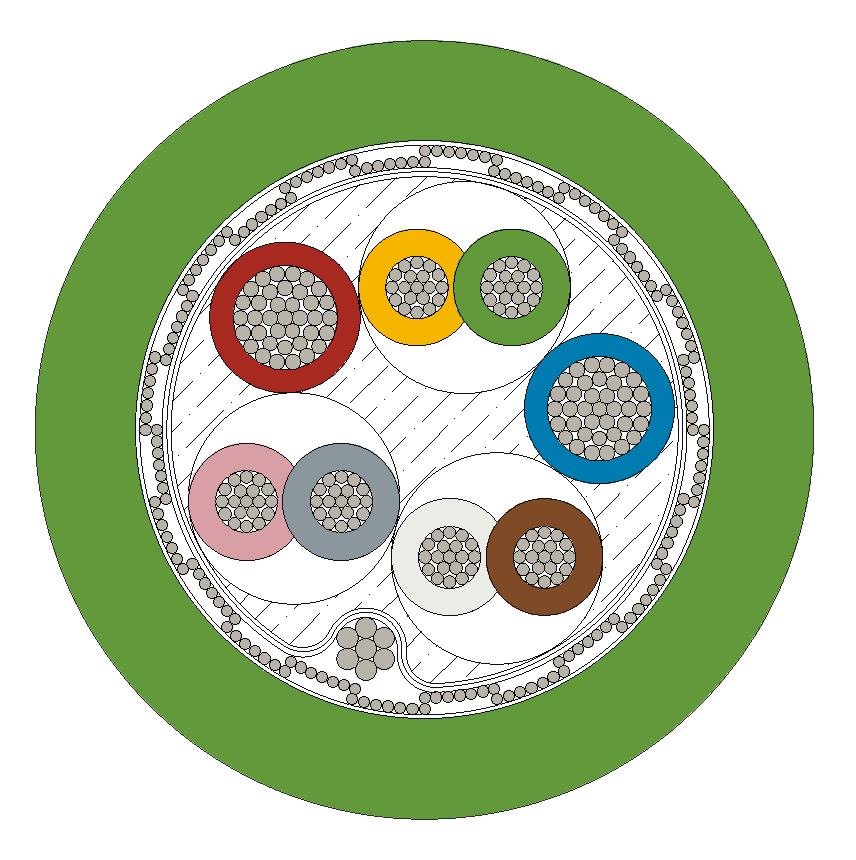

Construction features

Group 1
Conductor

CL6 Extra-flexible.

Tinned copper
Insulation

Polypropylene compound (PP)
Insulation Color

Colours sequence refers to DIN 47100 standard.

Group 2
Conductor

CL6 Extra-flexible.

Tinned copper
Insulation

Polypropylene compound (PP)
Insulation Color

Colours sequence refers to DIN 47100 standard.

Overall stranding

filler

Filler

Polypropylene

separationLayer

Wrapping

Non-woven tape

separationLayer

Wrapping tape screen

Alluminium inside/Polyester outside

drainWire

Drain wire

Tinned copper

screen

Screen

Tinned copper

85 % ± 5 %

separationLayer

Overall Wrapping

Non-woven tape
Sheath

PVC compound.
Sheath Colour Green, RAL: 6018, desina: yes

Products features


Fire performance

DIN VDE 0482-332-1-2

DIN EN 60332-1-2

IEC 60332-1-2

UL cable flame

UL VW-1

CSA FT1.


Oil performance

VDE 0473-811-404

IEC 60811-404 (EU)

CEI EN 50363-4-1 (EU)

1581 (UL)


Uv performance

CEI EN 50289-4-17

ISO 4892-2

ASTM-D-2565-16


Water performance

UL 1581

IEC 60811


cold Performance

UL 1581


Hydrocarbons performance

UL 1581

teco code N° cores x cross-section cut rolls [M] drums [M] Ext Ø [mm] Weight [kg/km] Ins. colour exc

46628

(3x2x0,14+2x0,34)SNcc/ST

(3x2xAWG26+2xAWG22)SNcc/ST

500

7

60

Group 1 3x2x0,14 : WH-BN

GN-YE

GY-PK Group 2 2x0,34 : BU-RD
