Dynamic Application

PMXX®️ PLUS

ENCODER&RESOLVER 3

Applicative Features

Up to 5 million cycles
Guaranteed Cycles
Up to 50 m/s2
Acceleration
Up to 25,0 m
Cable length
Up to 300 m/min
Travel speed
Minimum Bending radius
Cross Section Cross section max Dynamic Installation Static installation
0.14 1.00 7.0xØ 5.0xØ

Description

High-performance UL/CSA certified flexible cables for data transmission of encoder and resolver devices

designed for dynamic application in high-speed drag chains

also suitable for permanently flexible applications that allow free movement without tensile stress and without motion control in dry

damp

and wet environments. The polyurethane outer jacket provides excellent resistance properties against mechanical stress and chemical agents

making these cables suitable for indoor or outdoor use

even in very low temperatures.

Approvals

Certification image not found

AWM STYLE 21209 90°C 300V

Certification image not found

AWM I/II A/B 90°C 300V

Certification image not found

2014/35/CEE

Certification image not found

2014/30/EU

Certification image not found

2011/65/UE

Certification image not found

1907/2006

Certification image not found

IEC 60754-1

EN 50267-1

Technical data

storage

-50°C +90°C

dynamic

-30°C +90 °C

static

-40°C +90°C

Nominal voltage

300 V (UL/CSA)

Test Voltage

c/c 2000Vrms

1min

c/overall screen 2000Vrms

1min

Insulation resistance

≥1 Gohm/Km

Construction features

Group 1
Conductor

CL6 Extra-flexible.

Tinned copper
Insulation

Polypropylene compound (PP)
Insulation Color

Colours sequence refers to DIN 47100 standard.

Group 2
Conductor

CL6 Extra-flexible.

Tinned copper
Insulation

Polypropylene compound (PP)
Insulation Color

Colours sequence refers to DIN 47100 standard.

Overall stranding (mxnxY+nxY)SNcc/ST

filler

Filler

Polypropylene compound (PP)

separationLayer

Wrapping

Non-woven tape

separationLayer

Wrapping tape screen

Mylar inside - Alluminium outside

drainWire

Drain wire

Tinned copper

screen

Screen

Tinned copper

85 % ± 5 %

separationLayer

Overall Wrapping

Non-woven tape
Sheath

Polyurethane

compound (TMPU)
Sheath Colour Green, RAL: 6018, desina: yes

Overall stranding (mxnxY+nxY)ccST

filler

Filler

Polypropylene compound (PP)

separationLayer

Wrapping

Non-woven tape

drainWire

Drain wire

Tinned copper

screen

Screen

Tinned copper

85 % ± 5 %

separationLayer

Overall Wrapping

Non-woven tape
Sheath

Polyurethane

compound (TMPU)
Sheath Colour Green, RAL: 6018, desina: yes

Products features


Fire performance

Self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2

DIN EN 60332-1-2

IEC 60332-1-2

UL Cable flame

UL VW-1

CSA FT1.


Oil performance

VDE 0473-811-404

IEC 60811-404(EU)

CEI EN 50363-10-2(EU)

1581(UL)


Uv performance

ISO 4892-2

ASTM-D-2565-16

EN 50289-4-17


Water performance

UL 1581

IEC 60811-1-3


cold Performance

EN 60811-1-4


Abrasion performance

ASTM D 4060


Mud performance

NEK 606


Microbe performance

VDE 0282/10


Hozone performance

EN 50396 Art. 8.1.3

reference draw teco code N° cores x cross-section cut rolls [M] drums [M] Ext Ø [mm] Weight [kg/km] Ins. colour exc

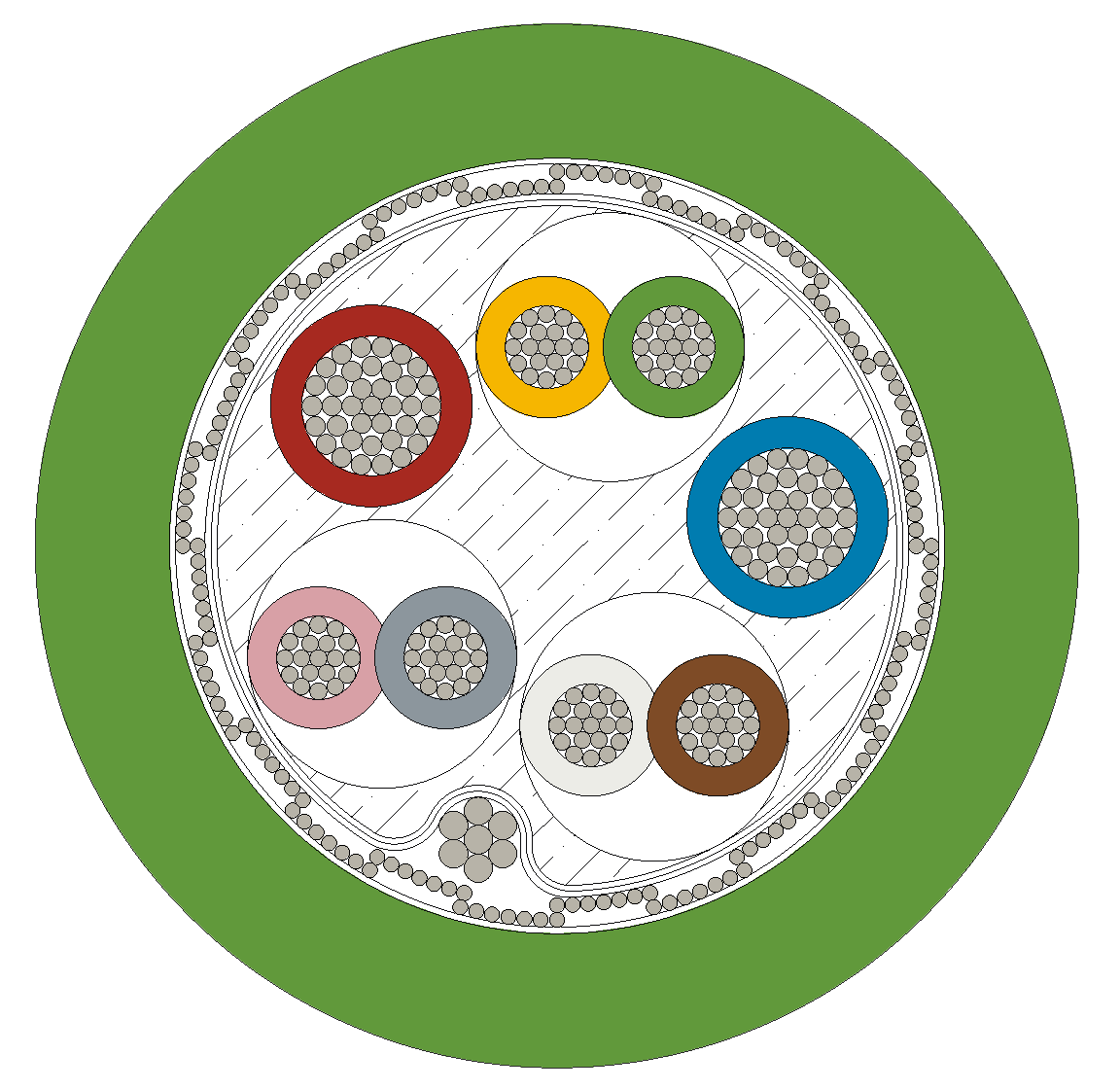

46683

(3x2x0,14+2x0,34)SNcc/ST

(3x2xAWG26+2xAWG22)SNcc/ST

100

7

70

Group 1 3x2x0,14 : WH-BN

GN-YE

GY-PK Group 2 2x0,34 : BU

RD

46688

(3x2x0,25+2x0,50)ccST

(3x2xAWG24+2xAWG21)ccST

100

500

7.8

90

Group 1 3x2x0,25 : WH-BN

GN-YE

GY-PK Group 2 2x0,50 : BU

RD

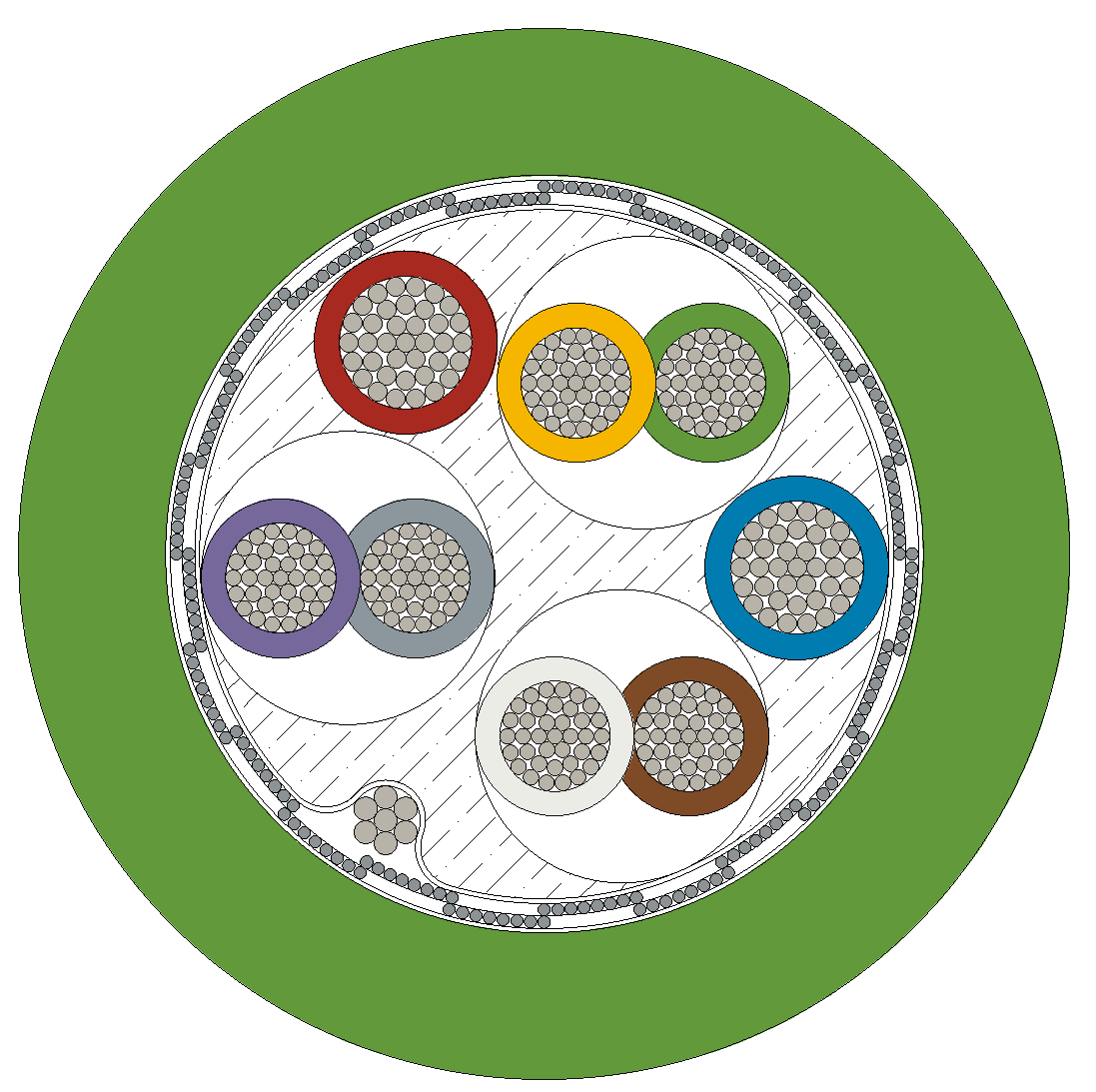

46689

(3x2x0,34+2x0,50)ccST

(3x2xAWG22+2xAWG21)ccST

100

500

8.6

110

Group 1 3x2x0,34 : WH-BN

GN-YE

GY-PK Group 2 2x0,50 : BU

RD
