Dynamic Application

PMXX®️ PLUS

ENCODER&RESOLVER 4

Applicative Features

Up to 5 million cycles
Guaranteed Cycles

Up to 50 m/s2
Acceleration

Up to 25,0 m
Cable length

Up to 300 m/min
Travel speed

Minimum Bending radius

Cross Section	Cross section max	Dynamic Installation	Static installation
0.14	1.00	7.0xØ	5.0xØ

Description

High-performance UL/CSA certified flexible cables for data transmission of encoder and resolver devices

designed for dynamic application in high-speed drag chains

also suitable for permanently flexible applications that allow free movement without tensile stress and without motion control in dry

damp

and wet environments. The polyurethane outer jacket provides excellent resistance properties against mechanical stress and chemical agents

making these cables suitable for indoor or outdoor use

even in very low temperatures.

Approvals

AWM STYLE 21209 90°C 300V

AWM I/II A/B 90°C 300V

2014/35/CEE

2014/30/EU

2011/65/UE

1907/2006

IEC 60754-1

EN 50267-1

Technical data

storage

-50°C +90°C

dynamic

-30°C +90 °C

static

-40°C +90°C

Nominal voltage

300 V (UL/CSA)

Test Voltage

c/c 2000Vrms

1min

c/overall screen 2000Vrms

1min

Insulation resistance

≥1 Gohm/Km

Construction features

Group 1
Conductor	CL6 Extra-flexible. Tinned copper
Insulation	Polypropylene compound (PP)
Insulation Color	Colours sequence refers to DIN 47100 standard.

Group 1

Conductor

CL6 Extra-flexible.

Tinned copper

Insulation

Polypropylene compound (PP)

Insulation Color

Colours sequence refers to DIN 47100 standard.

Overall stranding (mxnxY)ccST
	separationLayer	Wrapping Non-woven tape
	drainWire	Drain wire Tinned copper
	screen	Screen Tinned copper 85 % ± 5 %
	separationLayer	Overall Wrapping Non-woven tape
	Sheath	Polyurethane compound (TMPU)
	Sheath Colour	Green, RAL: 6018, desina: yes

Overall stranding (mxnxY)RPE/ST
	separationLayer	Wrapping Non-woven tape
	sheath	Inner jacket Polyolefin compound.
	screen	Screen Tinned copper 85 % ± 5 %
	separationLayer	Overall Wrapping Non-woven tape
	Sheath	Polyurethane compound (TMPU)
	Sheath Colour	Green, RAL: 6018, desina: yes

Products features

Fire performance

Self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2

DIN EN 60332-1-2

IEC 60332-1-2

UL Cable flame

UL VW-1

CSA FT1.

Oil performance

VDE 0473-811-404

IEC 60811-404(EU)

CEI EN 50363-10-2(EU)

1581(UL)

Uv performance

ISO 4892-2

ASTM-D-2565-16

EN 50289-4-17

Water performance

UL 1581

IEC 60811-1-3

cold Performance

EN 60811-1-4

Abrasion performance

ASTM D 4060

Mud performance

NEK 606

Microbe performance

VDE 0282/10

Hozone performance

EN 50396 Art. 8.1.3

teco code	Oem ref.	N° cores x cross-section	rolls [M]	drums [M]	Ext Ø [mm]	Weight [kg/km]	Ins. colour exc

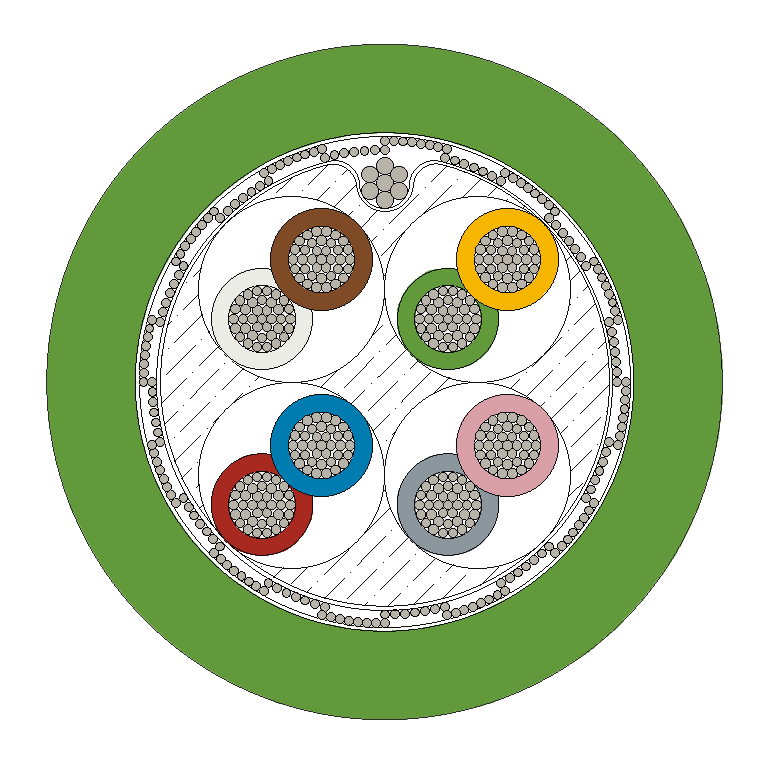

46691		(4x2x0,25)ccST (4x2xAWG24)ccST	100	500/1000	7.6	90	WH-BN GN-YE GY-PK BU-RD

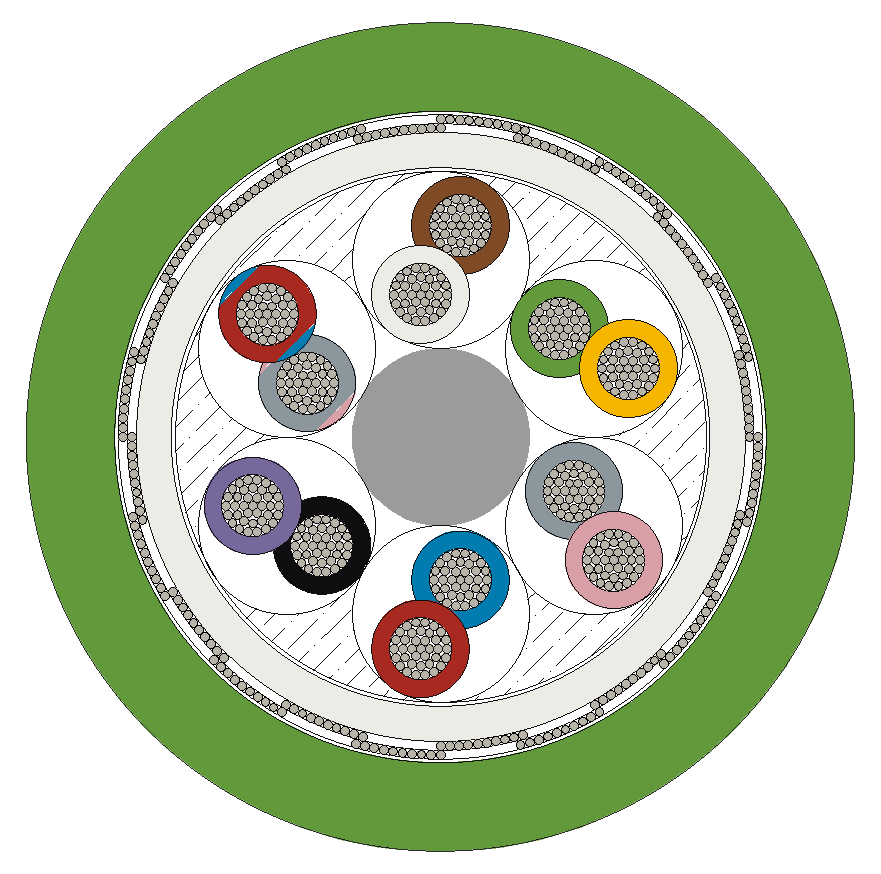

46698	INDRAMAT	(6x2x0,25)RPE/ST (6x2xAWG24)RPE/ST		500	9.7	110	WH-BN GN-YE GY-PK BU-RD BK-VT GY/PK-RD/BU *Ringed bicolour

reference draw

teco code

Oem ref.

N° cores x cross-section

cut

rolls [M]

drums [M]

Ext Ø [mm]

Weight [kg/km]

Ins. colour exc

46691

(4x2x0,25)ccST

(4x2xAWG24)ccST

100

500/1000

7.6

WH-BN

GN-YE

GY-PK

BU-RD

46698

INDRAMAT

(6x2x0,25)RPE/ST

(6x2xAWG24)RPE/ST

500

9.7

110
