Dynamic Application

PMXX®️ PLUS

ENCODER&RESOLVER 12

Applicative Features

Up to 5 million cycles
Guaranteed Cycles
Up to 50 m/s2
Acceleration
Up to 25,0 m
Cable length
Up to 300 m/min
Travel speed
Minimum Bending radius
Cross Section Cross section max Dynamic Installation Static installation
0.14 1.00 7.0xØ 5.0xØ

Description

High-performance UL/CSA certified flexible cables for data transmission of encoder and resolver devices

designed for dynamic application in high-speed drag chains

also suitable for permanently flexible applications that allow free movement without tensile stress and without motion control in dry

damp

and wet environments. The polyurethane outer jacket provides excellent resistance properties against mechanical stress and chemical agents

making these cables suitable for indoor or outdoor use

even in very low temperatures.

Approvals

Certification image not found

AWM STYLE 21209 90°C 300V

Certification image not found

AWM I/II A/B 90°C 300V

Certification image not found

2014/35/CEE

Certification image not found

2014/30/EU

Certification image not found

2011/65/UE

Certification image not found

1907/2006

Certification image not found

IEC 60754-1

EN 50267-1

Technical data

storage

- 50°C + 90°C

dynamic

- 30°C + 90°C

static

- 40°C + 90°C

Nominal voltage

300 V (UL/CSA)

Test Voltage

c/c 2000Vrms

1min

c/overall screen 2000Vrms

1min

Insulation resistance

≥1 Gohm/Km

Construction features

Group 1
Conductor

CL6 Extra-flexible.

Tinned copper
Insulation

Polypropylene
Insulation Color

Various colours

drainWire

Drain wire

Tinned copper

screen

Screen SF

Tinned copper

90 % ± 5 %

separationLayer

Tape

Polyester transparent.

sheath

Inner jacket

Polyolefin compound.

Group 2
Conductor

CL6 Extra-flexible.

Tinned copper
Insulation

Polypropylene
Insulation Color

Various colours

Overall stranding

filler

Filler

Polypropylene

separationLayer

Wrapping

Non-woven tape

screen

Screen

Tinned copper

85 % ± 5 %

separationLayer

Overall Wrapping

Non-woven tape
Sheath

Polyurethane

compound (TMPU)
Sheath Colour Green, RAL: 6018, desina: yes

Products features


Fire performance

Self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2

DIN EN 60332-1-2

IEC 60332-1-2

UL Cable flame

UL VW-1

CSA FT1


Oil performance

VDE 0473-811-404

IEC 60811-404(EU)

CEI EN 50363-10-2(EU)

1581(UL)


Uv performance

ISO 4892-2

ASTM-D-2565-16

EN 50289-4-17


Water performance

UL 1581

IEC 60811-1-3


cold Performance

EN 60811-1-4


Abrasion performance

ASTM D 4060


Mud performance

NEK 606


Microbe performance

VDE 0282/10


Hozone performance

EN 50396 Art. 8.1.3

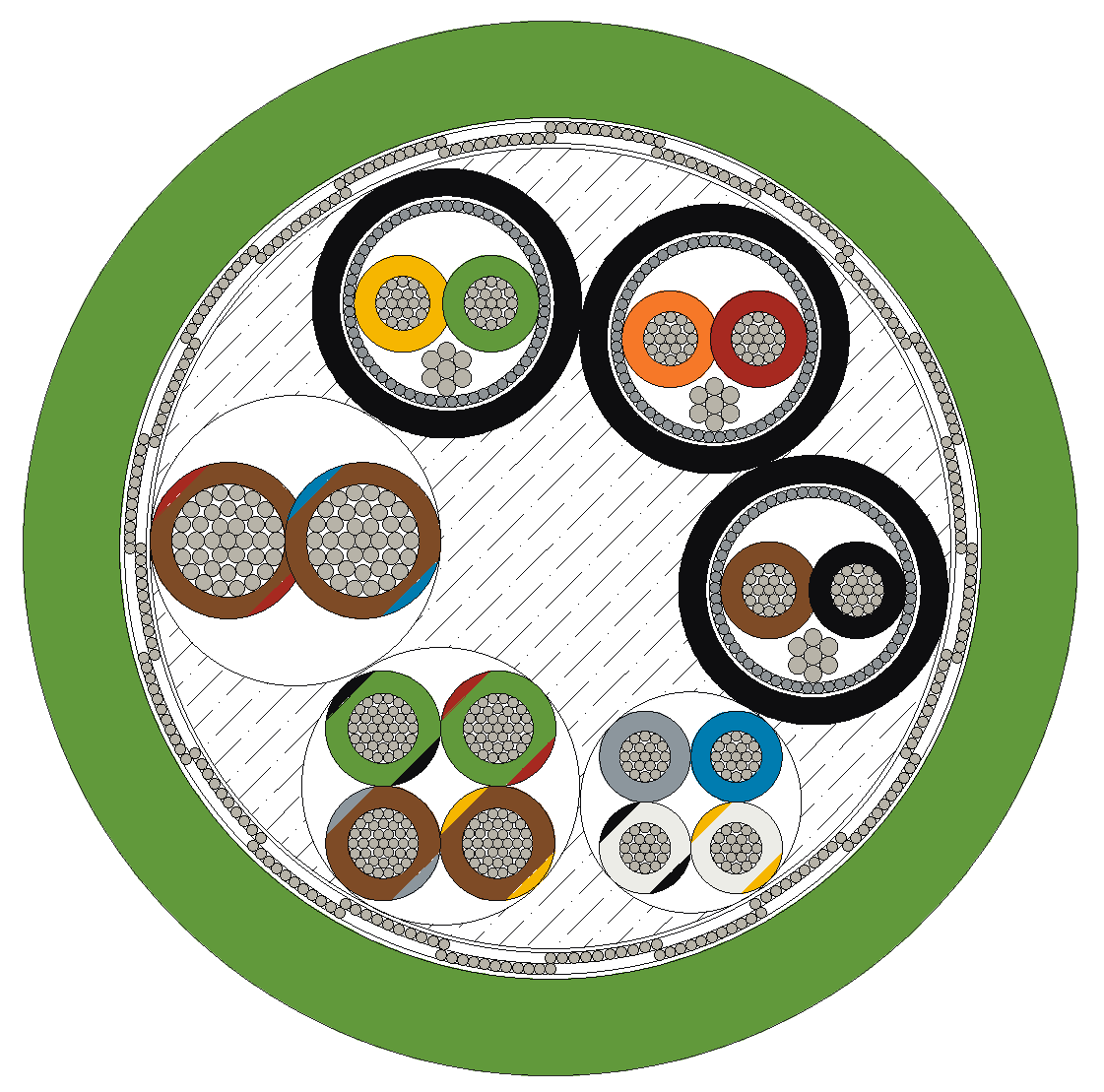

teco code Oem ref. Formation cut rolls [M] drums [M] Ext Ø [mm] Weight [kg/km] Ins. colour exc

46685

SIEMENS

[3x(2x0,14)ccSF/RPE+4x0,14+2x0,50]ST

[3x(2xAWG26)ccSF/RPE+4xAWG26+2xAWG21]ST

500

9

120

Group 1 3x(2x0,14) : YE-GN

RD-OR

BK-BN Group 2 4x0,14 : GY

BU

WH/YE*

WH/BK* Group 2 2x0,50 : BN/RD*

BN/BU* *Ringed bicolour

46686

SIEMENS

[3x(2x0,14)ccSF/RPE+4x0,14+4x0,25+2x0,50]ST

[3x(2xAWG26)ccSF/RPE+4xAWG26+4xAWG24+2xAWG21]ST

500

9.8

135

Group 1 3x(2x0,14) : YE-GN

RD-OR

BK-BN Group 2 4x0,14 : GY

BU

WH/YE*

WH/BK* Group 2 4x0,25 : BN/YE*

BN/GY*

GN/BK*

GN/RD* Group 2 2x0,50 : BN/RD*

BN/BU* *Ringed bicolour
