Dynamic Application

PMXX®️

ETHERNET 30V cat.7

Applicative Features

Up to 5 milions
Guaranteed Cycles
5,0 m/s2
Acceleration
15,0m
Cable length
300,0 m/min
Travel speed
Minimum Bending radius
Cross Section Cross section max Dynamic Installation Static installation
0.14 0.34 10xØ 6xØ

Description

UL/CSA certified flexible cables for industrial ETHERNET data transmission devices

designed for dynamic applications in drag chains but also suitable for static laying. The construction of these cables is designed to limit electromagnetic interference

matching the CATEGORY 7 ETHERNET standard. The polyurethane outer jacket provides good resistance to mechanical stress and chemical agents.

Approvals

Certification image not found

AWM STYLE 20236 80°C 30V

Certification image not found

AWM I-II A-B 80°C 30V

Certification image not found

2014/30/EU

Certification image not found

2011/65/UE

Certification image not found

1907/2006

Certification image not found

IEC 60754-1

Technical data

dynamic

-30°C +70°C

static

-50°C +80°C

Nominal voltage

30V

Test Voltage

1500V/1min (C/C)

1500V/1min (C/S)

Insulation resistance

5000 ohm

Nominal impedance

1÷250MHz 100ohm±15%

250÷600MHz

100ohm±20%

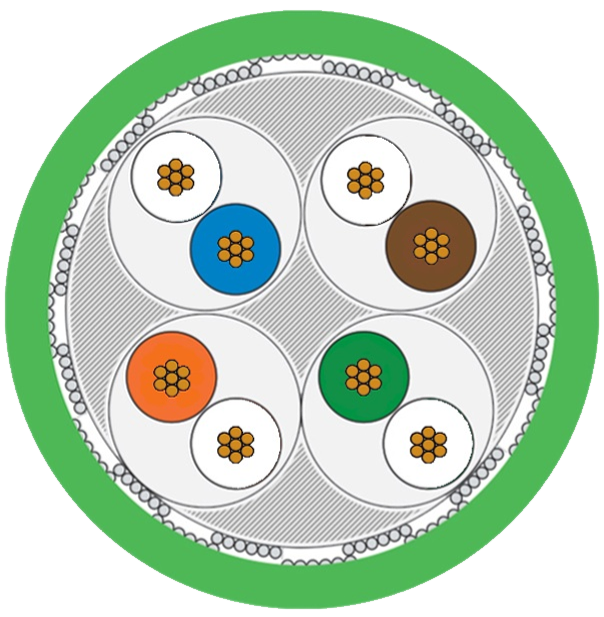

Construction features

Pairs
Conductor

CL6 Extra-flexible.

Bare copper.
Insulation

Polypropylene compound (PP)

separationLayer

Tape Double

Non-woven tape

screen

Shield tape

Mylar inside - Alluminium outside

100 % ± 5 %

screen

Shield braid

Tinned copper

85 % ± 5 %

Overall Stranding

filler

Filler

Polypropylene

screen

Shield braid

Tinned copper

85 % ± 5 %

separationLayer

Tape

Non-woven tape
Sheath

Polyurethane

compound (TMPU)
Sheath Colour Green, RAL: 6018, desina: yes

Products features


Fire performance

FT1(CSA)

IEC 60332-1-2(EU)


Oil performance

1581 (UL)

IEC60811-404(EU)

CEI EN 50363-10-2(EU)

IRM 902


Uv performance

UV Resistant

teco code Formation Capacitance [nF/Km] cut rolls [M] drums [M] Ext Ø [mm] Weight [kg/km] Ins. colour exc

39832

[4x(2xAWG26-19)SN-ST]ST

 48

100

500

9

112

Orange-White

Green-White

Blue-White

Brown-White
